Handheld barcode scanner

SUNMI 2D Handheld Scanner

Name: SUNMI Handheld Scanner
Brand: SUNMI
Availability: InStock

Reads 1D/2D codes on screens and paper in low light; haptic, light, and buzzer feedback; anti-skid grip; trigger rated for three million presses.

Key features

Discover what makes the 2D Handheld Scanner exceptional

1D/2D Barcode Support

Scan payment codes and product barcodes on screens or printed labels; fast recognition handles high‑volume processing.

High‑Performance CMOS & Dual Light

Equipped with a CMOS imaging chip plus white soft light and red aiming light, enabling quick scanning in dark or bright environments.

Advanced Decoding

Fast image‑decoding algorithm accurately reads distorted, wrinkled or contaminated 1D/2D codes.

Multimodal Feedback

Indicator light and buzzer with vibrating alert provide visual, audible and haptic feedback, ensuring no scan is missed in noisy settings.

Ergonomic & Stylish

Anti‑skid handle coating prevents drops; streamlined body with silk‑like tactile feel and crescent ambient lights complements store décor.

Unmatched Durability

Trigger withstands 3 million presses and the scanner survives 1.2 m (4 ft) drops.

Superior experiences

2D Handheld Scanner advantages

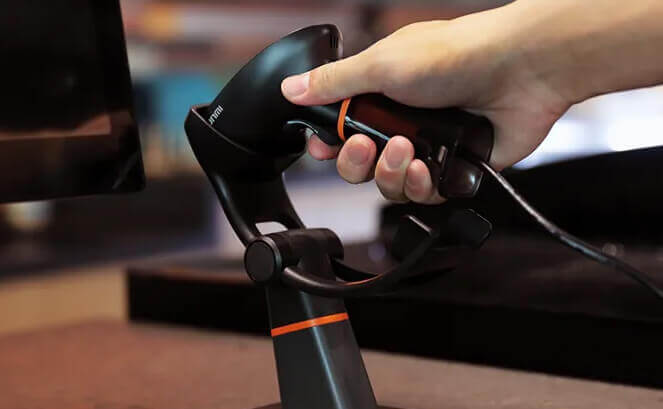

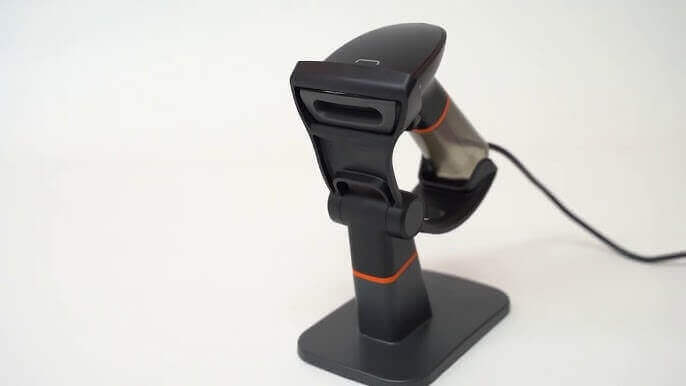

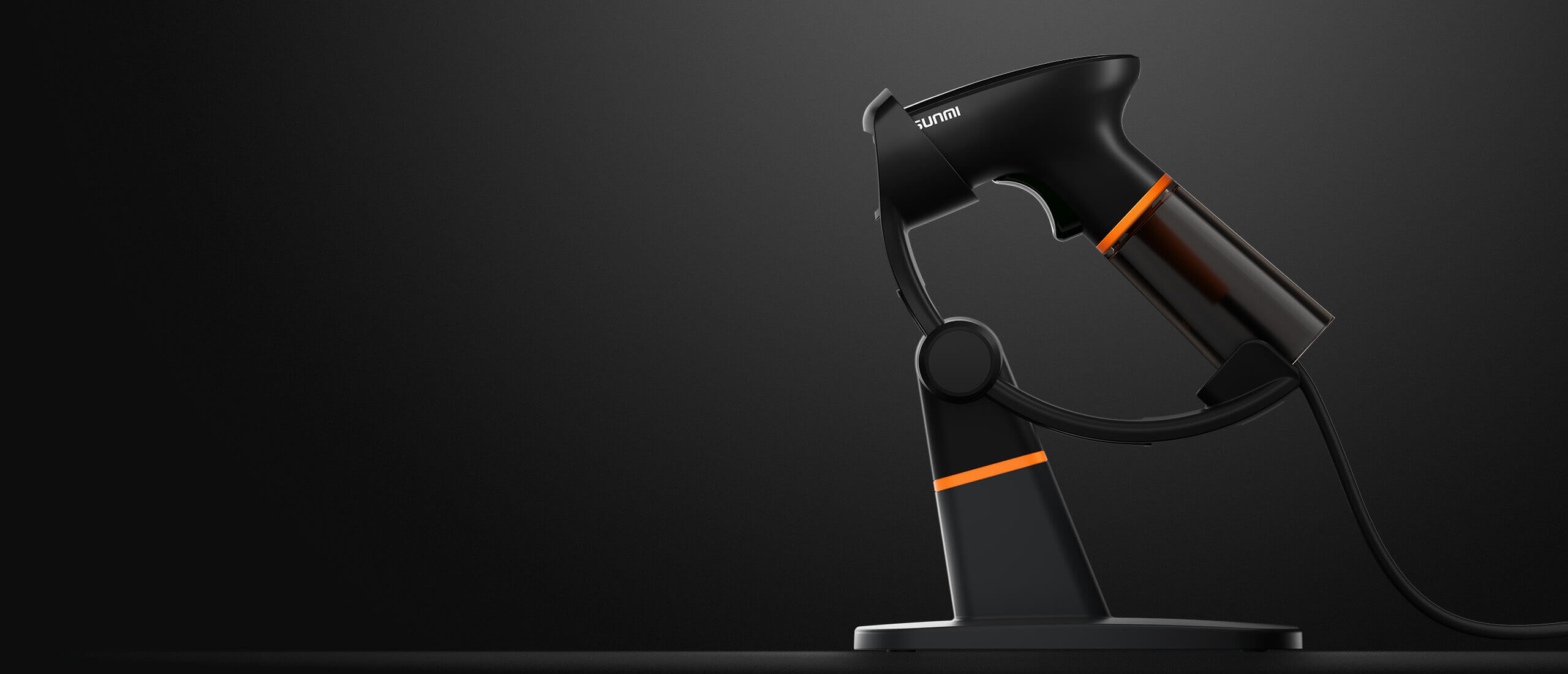

SUNMI 2D handheld scanner base

Specially designed for SUNMI 2D Handheld Scanner. When a scanner is put into this base, it automatically switches to continuous mode to read barcodes, easily enabling self-checkout or hand-free barcode scanning.

Technical specifications

Core specifications for the 2D Handheld Scanner

Operating Systems

Windows, iOS, Android, Linux

Image Sensor

CMOS

Pixel

640×480

Reading Precision

≥3 mil

Reading Depth of Field

EAN13 (13 mil) 55–300 mm;

QR Code (15 mil) 35–190 mm

Lighting

White LED

Focusing

Red light LED 625 nm

Barcode Sensitivity

Inclined ±50°;

rotary 360°;

deflected ±50°

Dimensions (L×W×H)

16 cm × 9.5 cm × 7.1 cm

Communication Port

USB 2.0 Type‑A male connector

Field of View

Horizontal 45°;

vertical 34°

Power Adapter

Operating voltage DC5 V ±5 %;

operating current < 500 mA

Symbol Contrast

≥30 %

Prompt

Buzzer, vibrator and LED prompt

Environment

Operating temperature –10–50 °C;

storage temperature –40–70 °C;

relative humidity 5–95 % (non‑condensing);

electrostatic protection ±8 kV direct, ±15 kV air;

drop height 1.2 m

Supported Symbologies

1D: Code128, UCC/EAN‑128, AIM128, EAN‑8, EAN‑13, ISBN/ISSN, UPC‑E, UPC‑A, Interleaved 2 of 5, ITF‑6, ITF‑4, Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI‑Plessey, RSS‑14, RSS‑Limited, RSS‑Expand;

2D: PDF417, QR Code, Data Matrix

Frequently Asked Questions

What barcode types does it support?

Both 1D and 2D barcodes including QR codes, Data Matrix, and all standard retail formats.

Is it compatible with SUNMI POS terminals?

Yes, it works seamlessly with all SUNMI desktop and kiosk terminals via USB.
