Kitchen display system

SUNMI D2s KDS

15.6-inch FHD kitchen display with IP55 water-resistant design, wet/glove touch support, PoE connectivity, and paperless FOH-to-BOH order sync for efficient restaurant operations.

产品图片

Key features

Discover what makes the D2s KDS exceptional

Paperless FOH–BOH Sync

Orders taken at the front of house are sent directly to the BOH screen, eliminating paper tickets and reducing errors

Wet / Glove‑Friendly Touch

The 15.6″ FHD capacitive multi‑touch screen responds quickly and can be tapped with wet or gloved hands

IP55 Sealed Enclosure

A fully sealed housing provides IP55 water‑resistant protection and can be easily cleaned—ideal for hot, humid and greasy kitchens

Easy Installation & PoE

Auto start when connected to power, optional Power over Ethernet reduces cables, and VESA compatibility allows wall, pole or arm mounting in vertical or horizontal orientation

SUNMI OS Efficiency

Default Startup boots directly into your chosen app, while Kiosk Mode prevents accidental exits, delivering focused kitchen workflows

User‑Centric Design

Concealed cables under a detachable rear plate, an easily reachable side button and rounded, obtuse‑angle corners simplify cleaning and operation

Where it’s used

Discover how D2s KDS improves speed and teamwork in real kitchens

Executive chef

“We can touch to change item status on the screen of D2s KDS and in real time sync changes to the FOH for an efficient communication, thus to reduce ticket.”

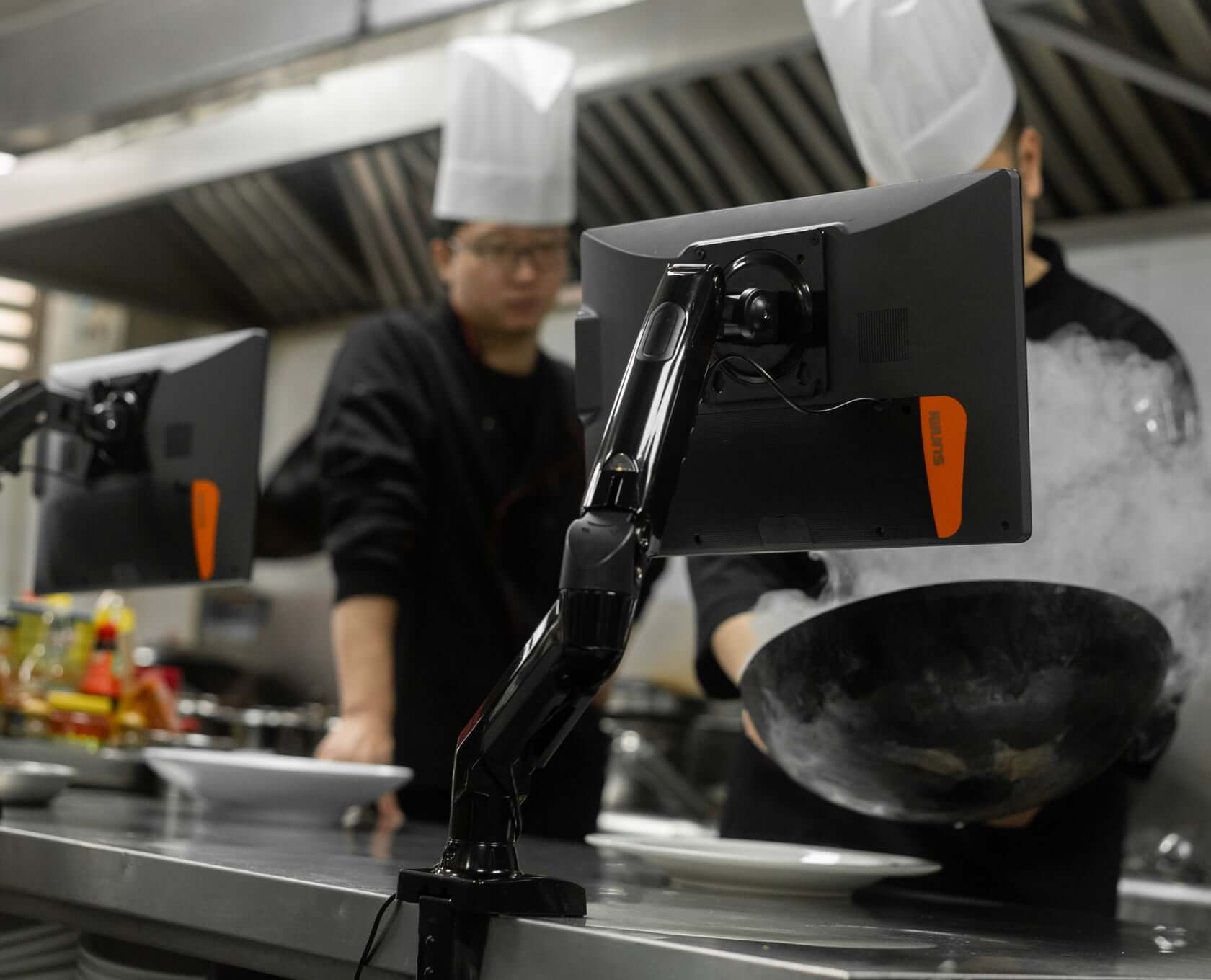

Kitchen line screen ticket management

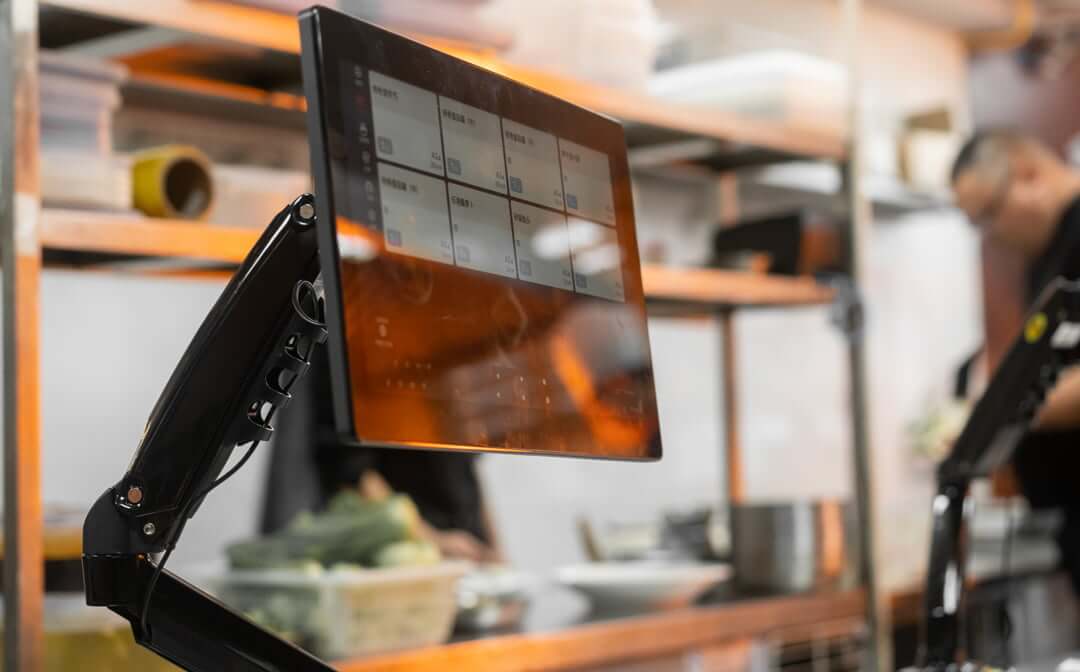

Glove-friendly touch in kitchen
FOH to BOH order sync

Line cook

“The D2s KDS screen responds quickly. I can even tap the screen with a gloved hand, quite convenient.”

Expediter screen at the pass
Item status updates
Kiosk mode screen

Technical specifications

Core specifications for the D2s KDS terminal

Model

L3561

OS

SUNMI OS (based on Android 11)

Processor

Quad‑core Cortex‑A55 1.8 GHz

Memory

4 GB RAM + 64 GB ROM

Display

15.6″ FHD (1920×1080) capacitive multi‑touch screen

Speaker

3 W mono speaker

Wi‑Fi

2.4 GHz/5 GHz IEEE 802.11 a/b/g/n/ac

Bluetooth

Bluetooth 2.1/3.0/4.0/4.2 with BLE

LAN

100 M LAN, PoE supported

Buttons

Power on/off button (locks the screen)

External Memory

MicroSD (TF) slot, up to 1 TB

Ports

4× USB Type A, 1× RJ11, 1× Auto‑start switch, 1× RJ45 LAN, 1× 3.5 mm audio jack, 1× Power port, 1× Micro‑USB debug port

Power Adapter

Input: AC 100–240 V (0.6 A); Output: DC 24 V (1 A)

Dimensions (L×W×H)

381.51 × 251.21 × 40.58 mm

Weight

≈ 1.69 kg

Environment

Operating temperature: 0–40 °C; Storage temperature: −20–60 °C

Certifications

IP55 water‑resistance (third‑party certified)

Frequently Asked Questions

What screen size is the D2s KDS?
It features a 15.6-inch FHD touch screen, optimal for visibility from 3-5 feet away in busy kitchens.
Is the D2s KDS heat and grease resistant?
Yes, it is engineered for kitchens with a sealed enclosure to protect against oil smoke and steam, and works with wet or gloved hands.
Can the D2s KDS integrate with my POS system?
It runs Android and works with major KDS apps. ISVs can use the SUNMI SDK for custom integrations.
Does it support bump-bar functionality?
Yes, it supports external bump bars via USB or Bluetooth, though it is primarily a touchscreen device.
How is the D2s KDS powered?
It supports Power over Ethernet (PoE) for reliable power and data, or a standard power adapter. We recommend PoE for kitchen setups.
